51.2V 314Ah LiFePO4 Battery,16kWh Solar Storage Battery,Wall Mounted Lithium Battery

51.2V 314Ah LiFePO4 Battery

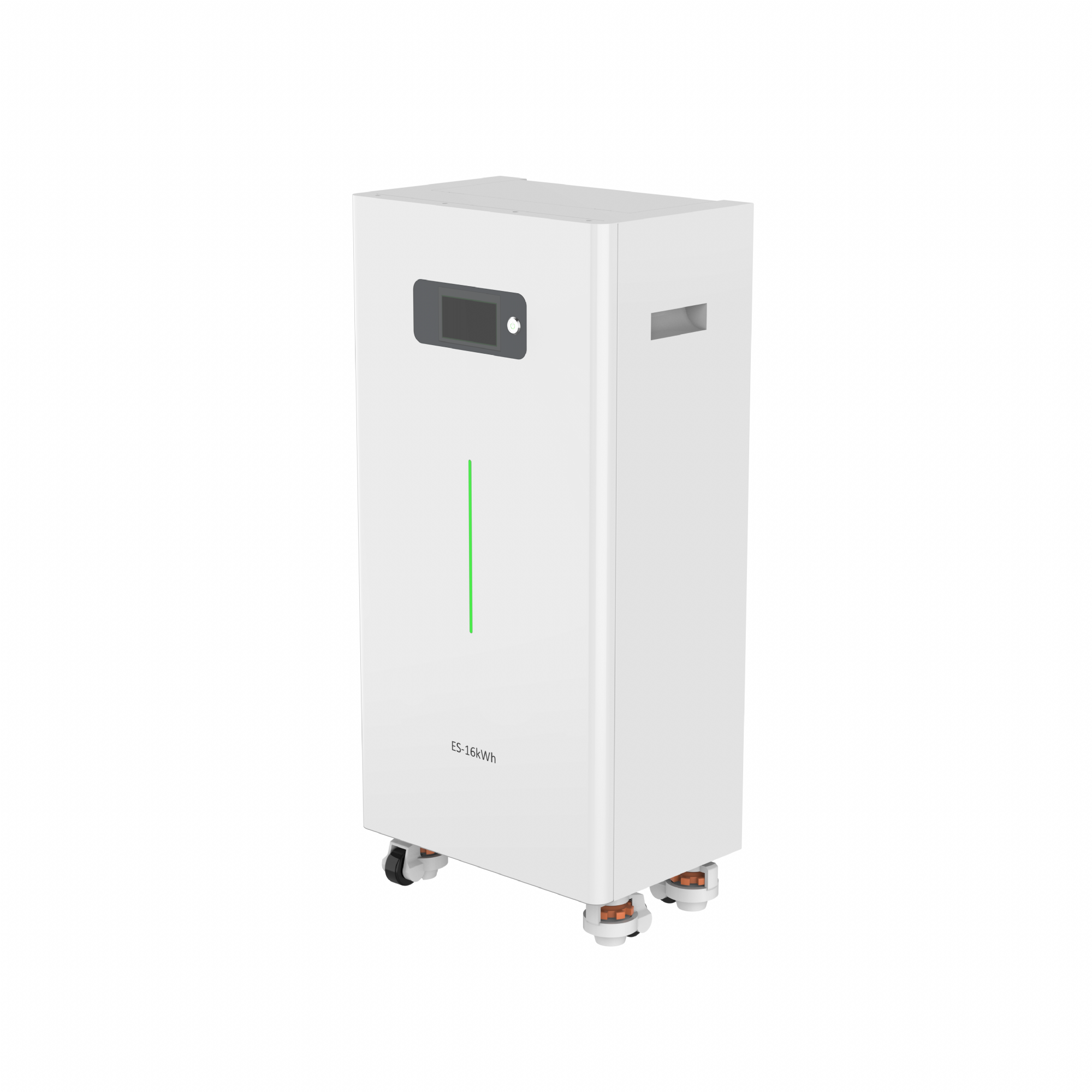

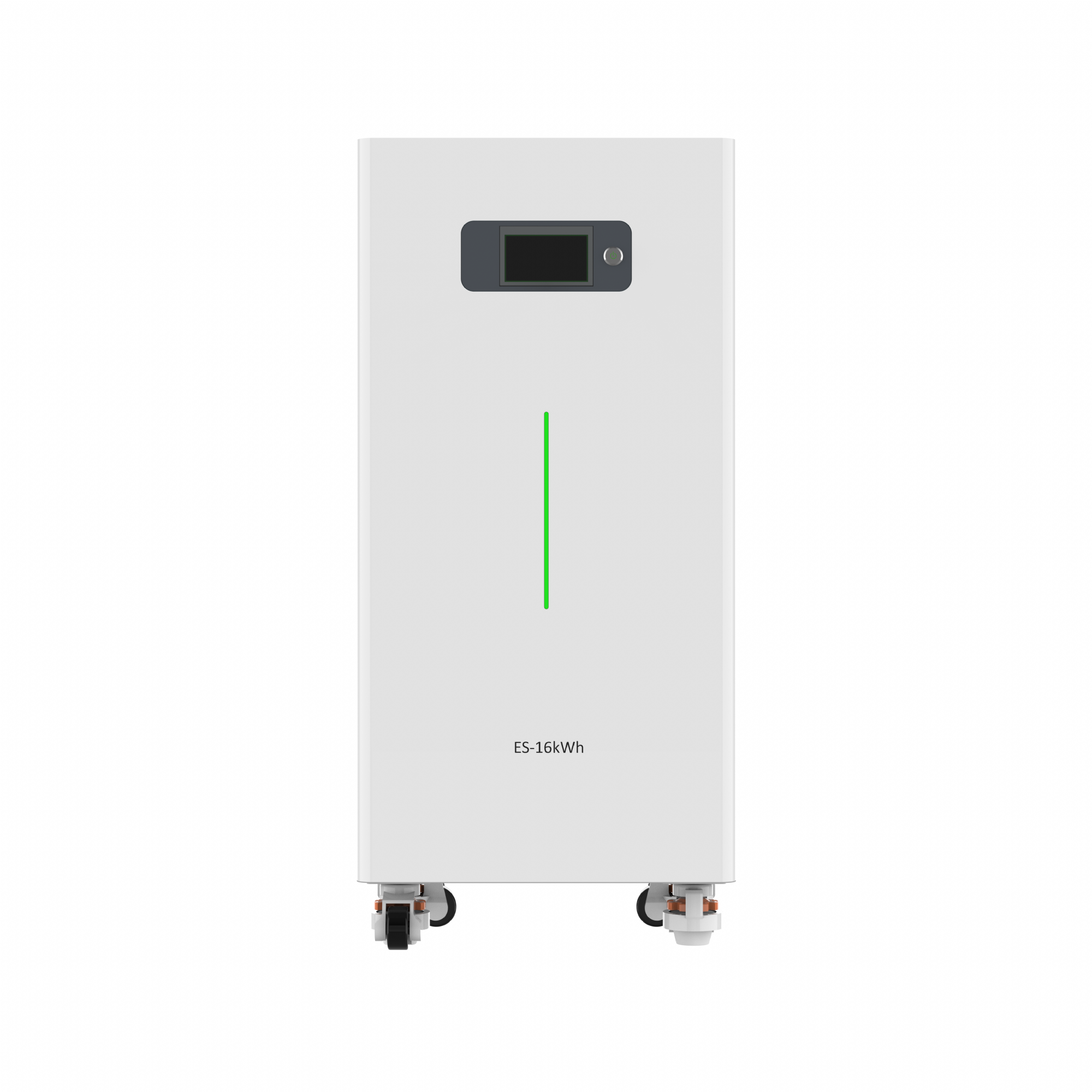

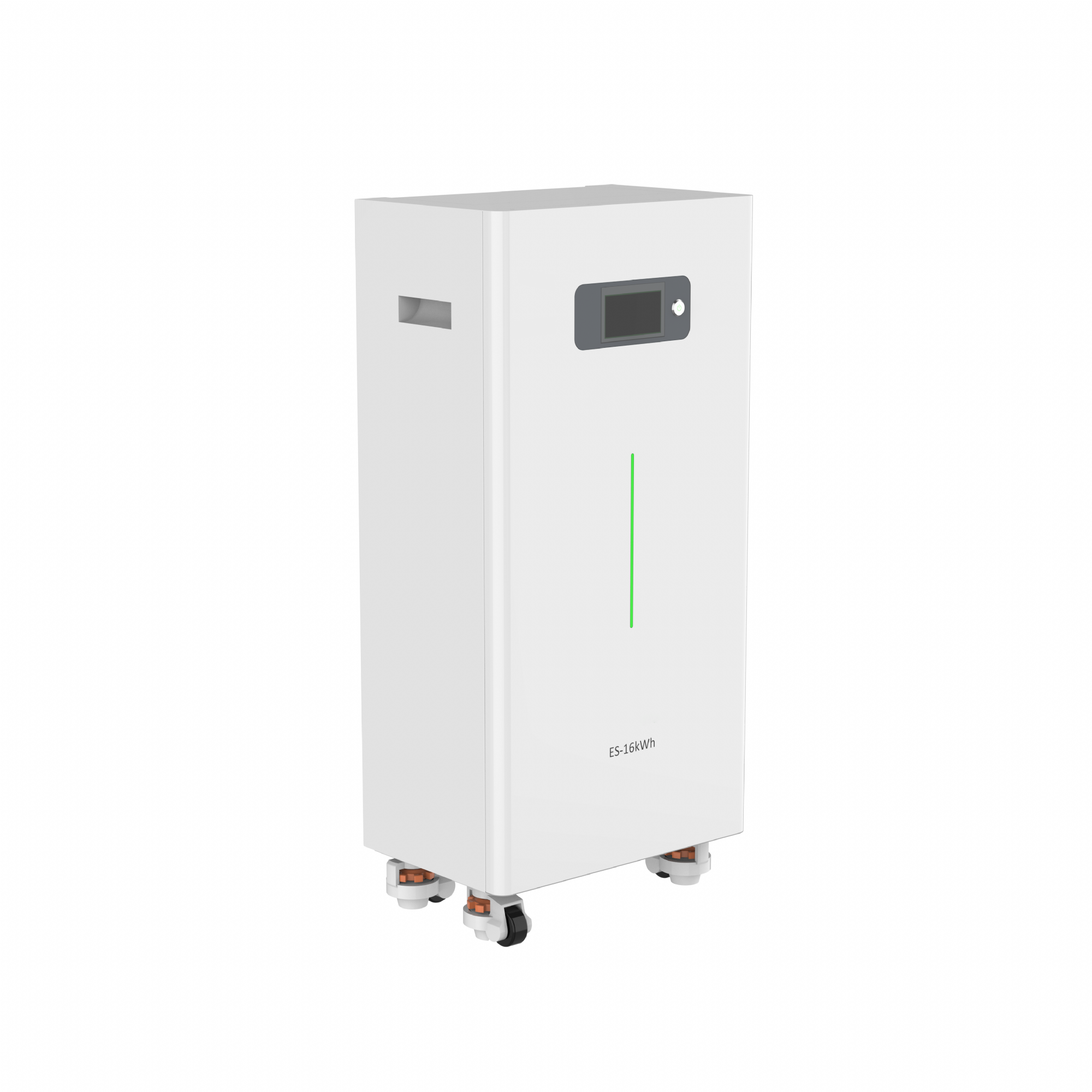

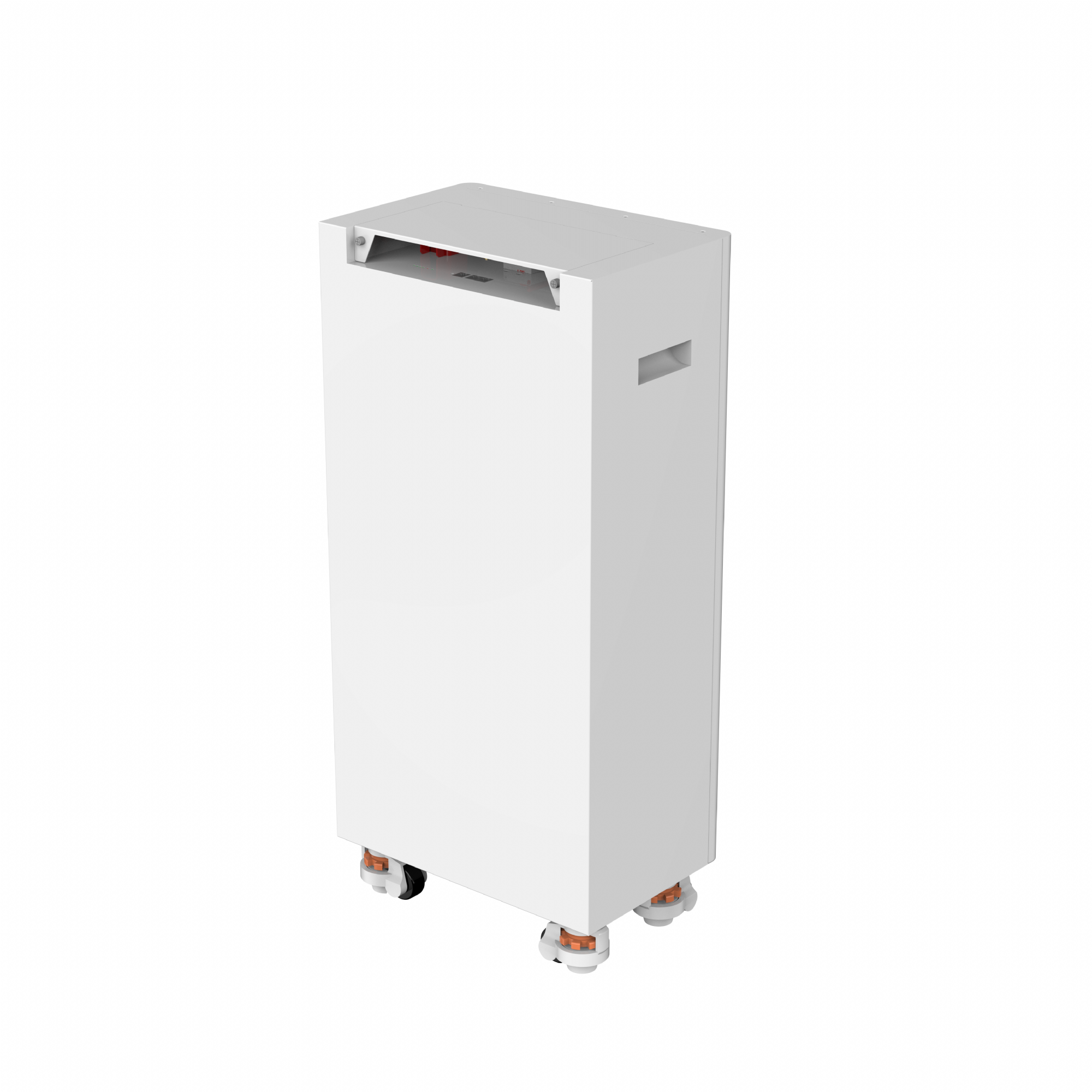

High Capacity 8000 Cycles 51.2V 314Ah 16.08kWh LiFePO4 Wall Mounted Solar Storage Battery
Key Feature

Battery Specifications

Model No MP-W-A16K
Nominal Parameters
Battery Chemistry LiFePO4
Voltage 51.2V
Capacity 314Ah
Energy 16.08kWh
Dimension (W/H/D) 435*932*287mm / 17.1*36.7*11.3 in
Weight Approximate 130kgs / 421 lbs
Basic Parameters
Warranty Period  5 years
Cycle Life (25±2°C, 0.5C/0.5C, 80%EOL) ≥8000
Storage Time / Temperature 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation Temperature -20°C to 60°C @ 60+/-25% Relative Humidity
Storage Temperature 0°C to 45°C @ 60+/-25% Relative Humidity
Certification CB IEC62619, CE, UN38.3, MSDS
IP Rating of Enclosure IP20
Electrical Parameters
Operation Voltage 46-56Vdc
Max. Charging Voltage 56Vdc
Max. Charging Current 150A
Max. Discharging Current 150A
Max Power 7680W
Advantage

Long life and safety

Vertical industry integration ensures more than 6500 cycles with 80% DoD. Safe Lithium iron phosphate battery cell.

·Intelligent

Each battery with independent BMS system manages power output smartly and effectively.

·Modularization

Modular design gives the end customers the power of choice of capacity Deliver up to 257.28KWh with single max module (16.08KWh) at 16pcs parallel connection.

·Easy to install and use

Just plug and play to minimize the installation time and cost. Compact and fashionable design fits in your sweet home environment.

·Compatibility

Compatible with most of the available Hybrid inverters.

·Safety Cert

CE, UN38.3, MSDS

Specification

Battery Specifications

Model No MP-W-A16K
Nominal Parameters
Battery Chemistry LiFePO4
Voltage 51.2V
Capacity 314Ah
Energy 16.08kWh
Dimension (W/H/D) 435*932*287mm / 17.1*36.7*11.3 in
Weight Approximate 130kgs / 421 lbs
Basic Parameters
Warranty Period  5 years
Cycle Life (25±2°C, 0.5C/0.5C, 80%EOL) ≥8000
Storage Time / Temperature 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation Temperature -20°C to 60°C @ 60+/-25% Relative Humidity
Storage Temperature 0°C to 45°C @ 60+/-25% Relative Humidity
Certification CB IEC62619, CE, UN38.3, MSDS
IP Rating of Enclosure IP20
Electrical Parameters
Operation Voltage 46-56Vdc
Max. Charging Voltage 56Vdc
Max. Charging Current 150A
Max. Discharging Current 150A
Max Power 7680W
Application

Application

  • Residential Solar Energy Storage (ESS): Storing excess solar power for nighttime use to achieve energy independence.

  • Home Backup Power (UPS): Providing seamless emergency electricity during grid outages or unstable power supply.

  • Off-Grid Power Systems: Powering remote cabins, mountain villas, or areas without access to the public utility grid.

  • Hybrid Solar Solutions: Integrating with on-grid and off-grid inverters for flexible energy management and peak shaving.

  • Small Commercial Energy Storage: Reducing electricity costs for small offices, retail stores, and warehouses.

  • Critical Infrastructure Support: Reliable power backup for telecommunication base stations and security monitoring systems.

  • Self-Consumption Optimization: Maximizing the use of self-generated renewable energy to reduce monthly utility bills.

  • Microgrid Applications: Serving as a core energy storage module for localized, independent power networks.
