51.2V 500Ah Rack-Style Battery

·Convenient

Quick installation, standard of 19-inch embedded designed module is comfortable for installation and maintenance.

·Available Flexible expansion

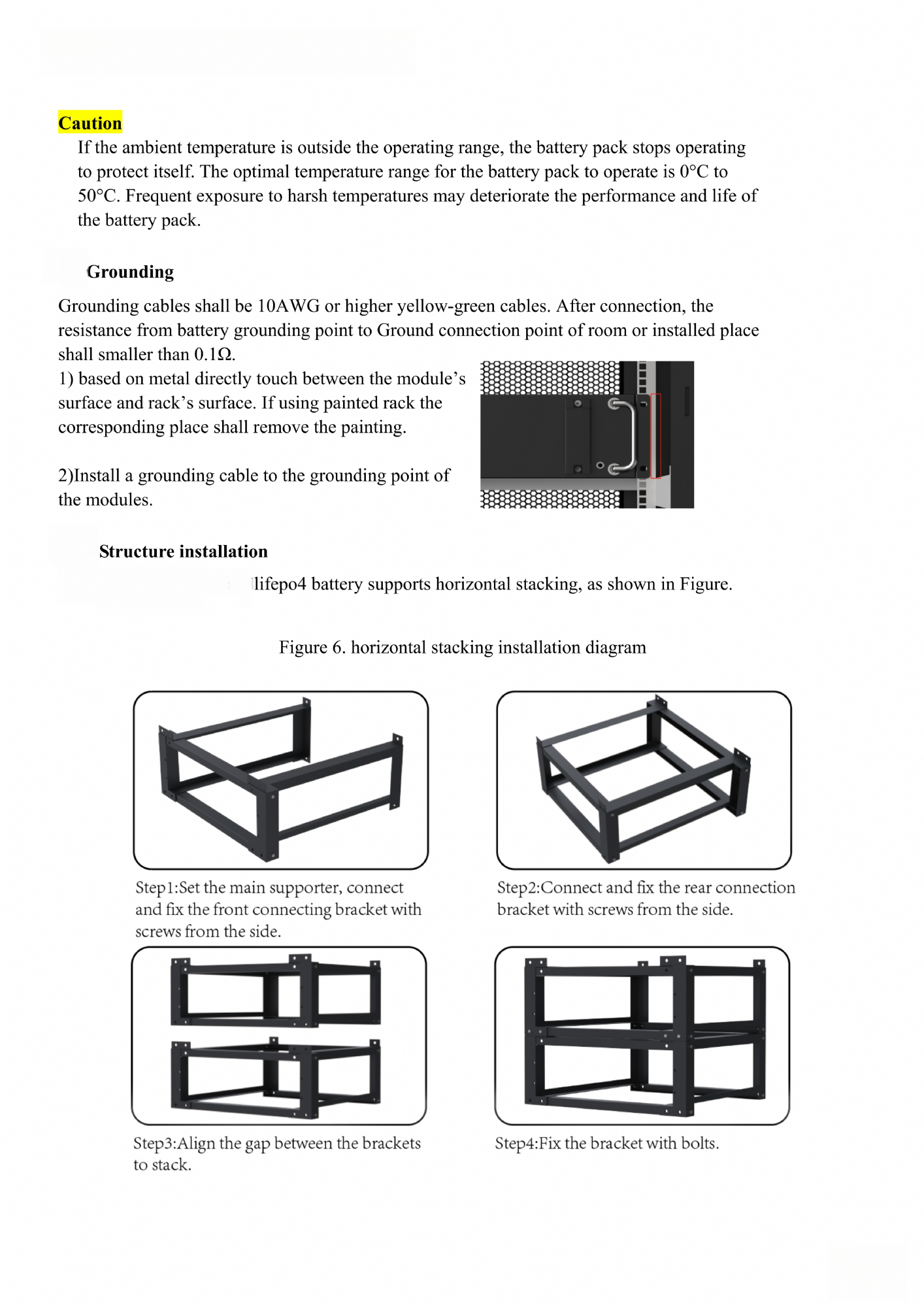

Support Wallmounted and Stackable installation.

·Safe and reliable

Cathode material is made from LiFePO4 with safety performance and long cycle life, The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.

·Flexible configuration

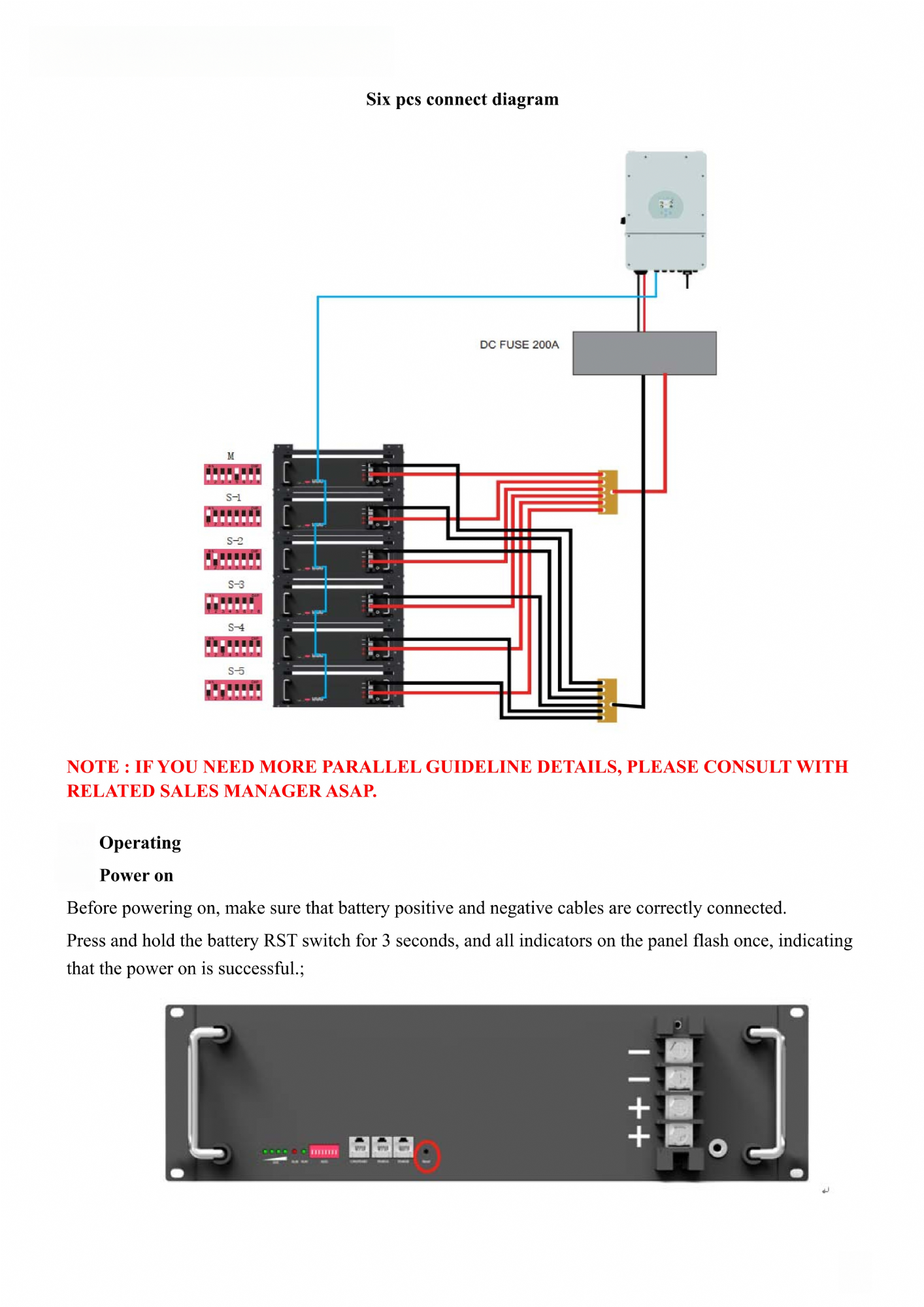

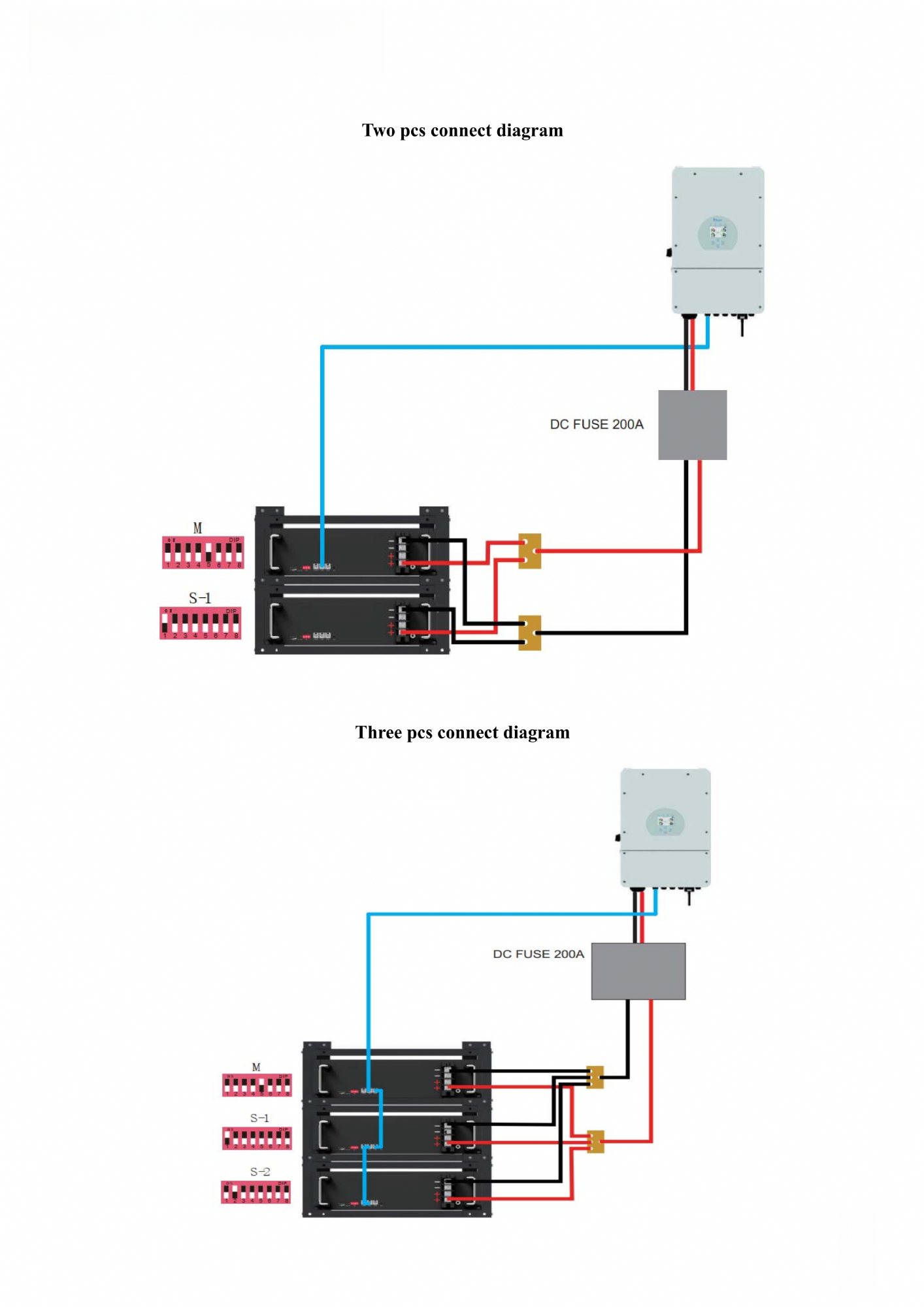

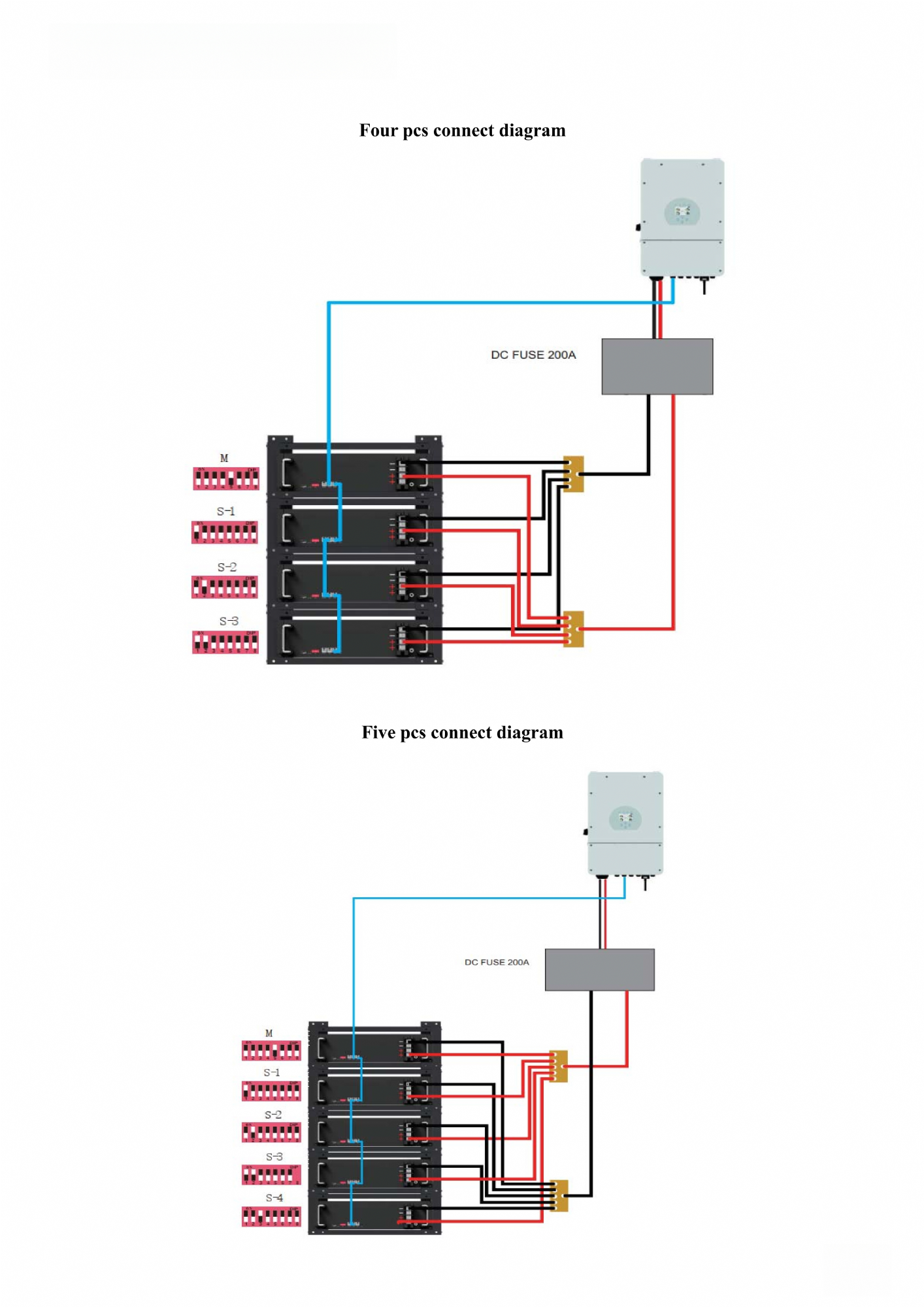

Multiple battery modules can be in parallel for expanding capacity and power. Support USB upgrade, WIFI upgrade (optional), remote upgrade (Compatible with all inverter).

·Intelligent BMS

It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell.

·Wide temperature

Working temperature range is from -20℃ to 55℃, with excellent discharge performance and cycle life.

• Model No: MP-P48500ESA1

• Nominal Voltage: 48V

• Nominal Capacity: 500Ah

• Power: 24Kwh

• Dimensions (L*w*h): 482.6*520*132.5mm*5

• Weight: 200kg

• Discharge Voltage: 45-54V

• Charge Voltage: 52.5-54V

• Max Discharge Current: 500A

• Max Charge Current: 500A

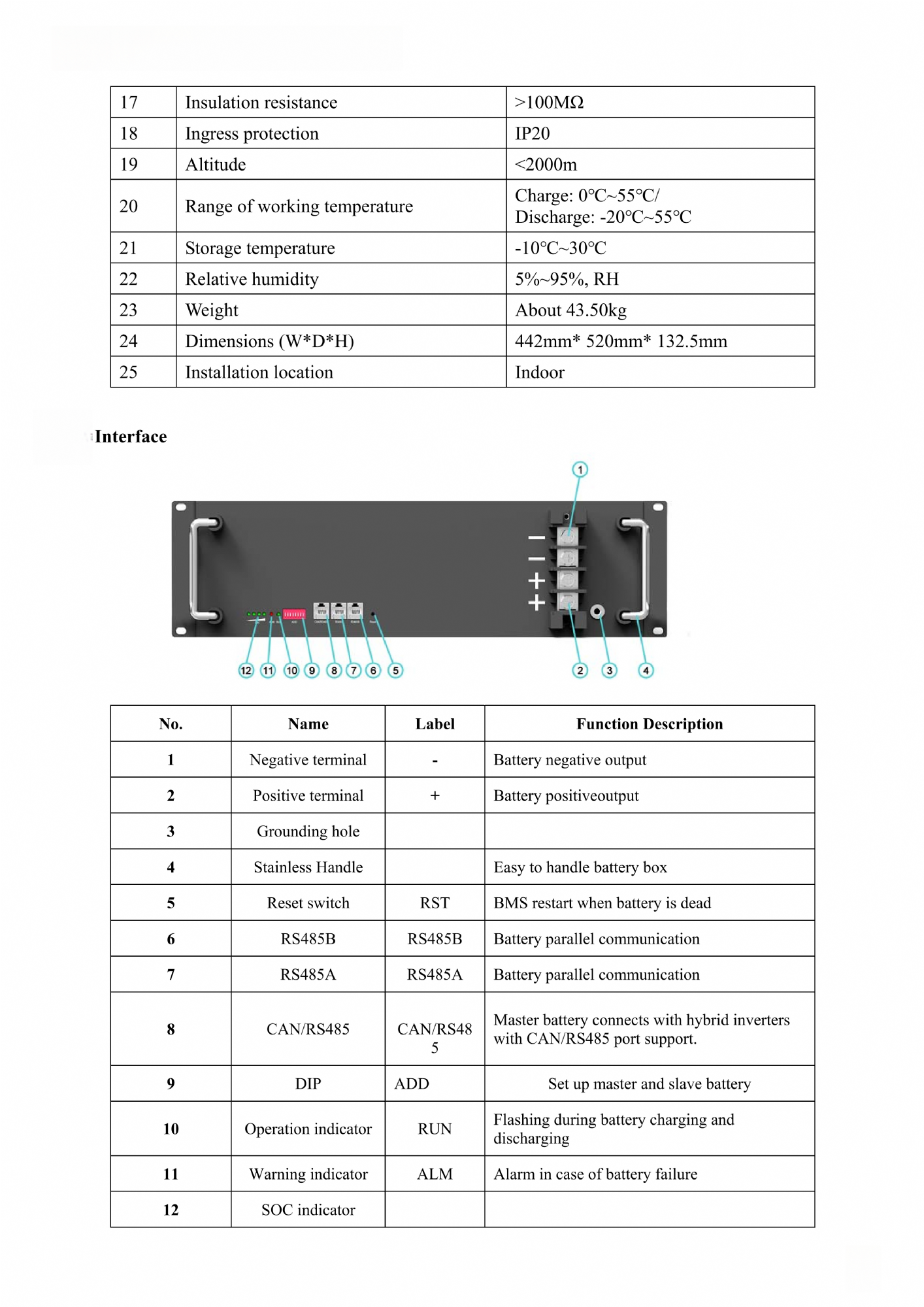

• Communication: RS232, RS485, CAN

• Charging Temperature: 0°C - 50°C

• Discharging Temperature: -20°C - 55°C

• Shelf Temperature: -20°C - 60°C

• Certification: IEC/CE/UN38.3

• Design Life: 10+ Years (25°C / 77°F)

• Cycle Life: > 6500 (80% DoD)

• Residential Solar Storage (ESS): Perfectly integrates into standard server racks for clean, organized home energy management.

• Data Center & Server Backup: Provides reliable DC power to critical IT infrastructure and network equipment during outages.

• Telecommunication Base Stations: Ensures 24/7 connectivity for mobile networks and communication towers in remote areas.

• Small Business Power Backup: Supports essential operations for retail stores, offices, and pharmacies during grid instability.

• Microgrid Systems: Function as a modular energy unit for localized power networks in rural or island communities.

• Peak Shaving & Load Shifting: Stores energy during low-tariff hours to reduce electricity costs for commercial users.

• Industrial UPS Systems: Acts as a heavy-duty uninterruptible power supply for automated production lines and safety systems.

• Renewable Energy Integration: Pairs with large-scale photovoltaic (PV) arrays to stabilize power output for grid-tied systems.
