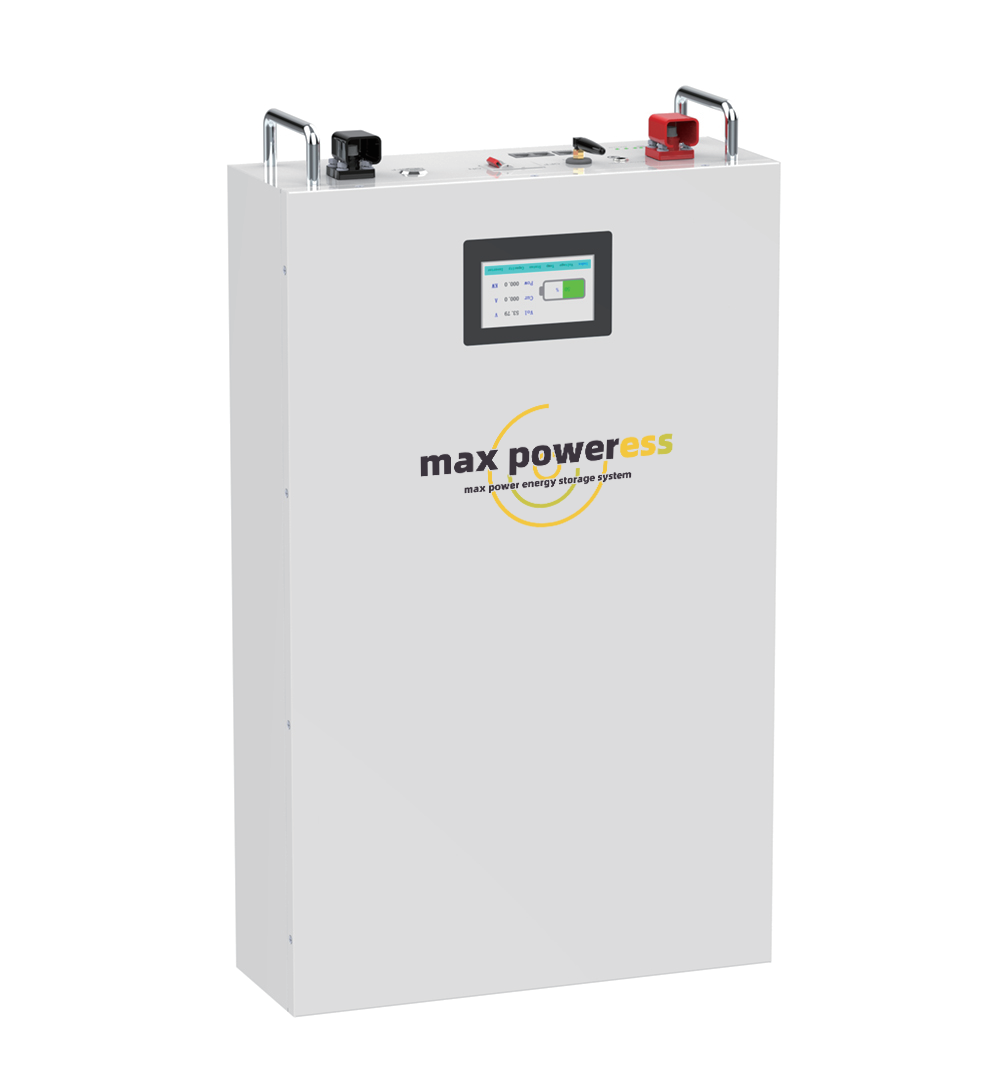

51.2V 100Ah LiFePO4 Battery,6500 Cycles Lithium Battery,Stackable Energy Storage Battery

51.2V 100Ah 5.12kWh LFP Battery

51.2V 100Ah LiFePO4 Battery Stackable Solar Storage System with 6500 Cycles and CAN RS485 Communication

Key Feature

Battery Specifications

Nominal Parameters
Battery Chemistry	LiFePO4
Voltage	51.2V
Operating Voltage	46-56V
Capacity	100Ah
Energy	5.12Kwh
Scalability	Max.16pcs in parallel (81.92kWh)
Usable Energy	4.61Kwh
Charge/Discharge Current: Recommend	50A
Charge/Discharge Current: Max. Continuous	100A
Charge/Discharge Current: Peak Current	150A
Basic Parameters
Recommend Depth of Discharge	80%
Dimension (W/H/D)	687400142mm / 27.0515.755.59 in
Weight Approximate	62.5kgs / 137 lbs
Master LED Indicator	4 LED (SOC:25%~100%) / 2 LED (working, alarming, protecting)
IP Rating of Enclosure	IP20
Working Temperature	Charge:0℃ ~ 55℃ Discharge:-20℃ ~ 55℃
Storage Temperature	0℃ ~ 35℃
Humidity	5%~95%
Altitude	≤ 2000m
Cycle Life (25±2℃,0.5C/0.5C,80%EOL)	≥ 6500
Installation	Stackable, Wallmount, Floor-Mounted
Communication Port	CAN2.0, RS485
Warranty Period [3]	5 years
Life Cycle Power During Warranty Period	15.51MWh@80% EOL
Certification	CB-IEC62619, CE-EMC, UN38.3, MSDS

Get A Quote Customize Battery

Advantage

Long life and safety

Vertical industry integration ensures more than 6500 cycles with 80% DoD. Safe Lithium iron phosphate battery cell.

·Intelligent

Each battery with independent BMS system manages power output smartly and effectively.

·Modularization

Modular design gives the end customers the power of choice of capacity Deliver up to 257.28KWh with single max module (16.08KWh) at 16pcs parallel connection.

·Easy to install and use

Just plug and play to minimize the installation time and cost. Compact and fashionable design fits in your sweet home environment.

·Compatibility

Compatible with most of the available Hybrid inverters.

·Safety Cert

CE, UN38.3, MSDS

Specification

Battery Specifications

Nominal Parameters
Battery Chemistry	LiFePO4
Voltage	51.2V
Operating Voltage	46-56V
Capacity	100Ah
Energy	5.12Kwh
Scalability	Max.16pcs in parallel (81.92kWh)
Usable Energy	4.61Kwh
Charge/Discharge Current: Recommend	50A
Charge/Discharge Current: Max. Continuous	100A
Charge/Discharge Current: Peak Current	150A
Basic Parameters
Recommend Depth of Discharge	80%
Dimension (W/H/D)	687400142mm / 27.0515.755.59 in
Weight Approximate	62.5kgs / 137 lbs
Master LED Indicator	4 LED (SOC:25%~100%) / 2 LED (working, alarming, protecting)
IP Rating of Enclosure	IP20
Working Temperature	Charge:0℃ ~ 55℃ Discharge:-20℃ ~ 55℃
Storage Temperature	0℃ ~ 35℃
Humidity	5%~95%
Altitude	≤ 2000m
Cycle Life (25±2℃,0.5C/0.5C,80%EOL)	≥ 6500
Installation	Stackable, Wallmount, Floor-Mounted
Communication Port	CAN2.0, RS485
Warranty Period [3]	5 years
Life Cycle Power During Warranty Period	15.51MWh@80% EOL
Certification	CB-IEC62619, CE-EMC, UN38.3, MSDS

Application

Application

Residential Solar Energy Storage (ESS): Storing excess solar power for nighttime use to achieve energy independence.
Home Backup Power (UPS): Providing seamless emergency electricity during grid outages or unstable power supply.
Off-Grid Power Systems: Powering remote cabins, mountain villas, or areas without access to the public utility grid.
Hybrid Solar Solutions: Integrating with on-grid and off-grid inverters for flexible energy management and peak shaving.
Small Commercial Energy Storage: Reducing electricity costs for small offices, retail stores, and warehouses.
Critical Infrastructure Support: Reliable power backup for telecommunication base stations and security monitoring systems.
Self-Consumption Optimization: Maximizing the use of self-generated renewable energy to reduce monthly utility bills.
Microgrid Applications: Serving as a core energy storage module for localized, independent power networks.
