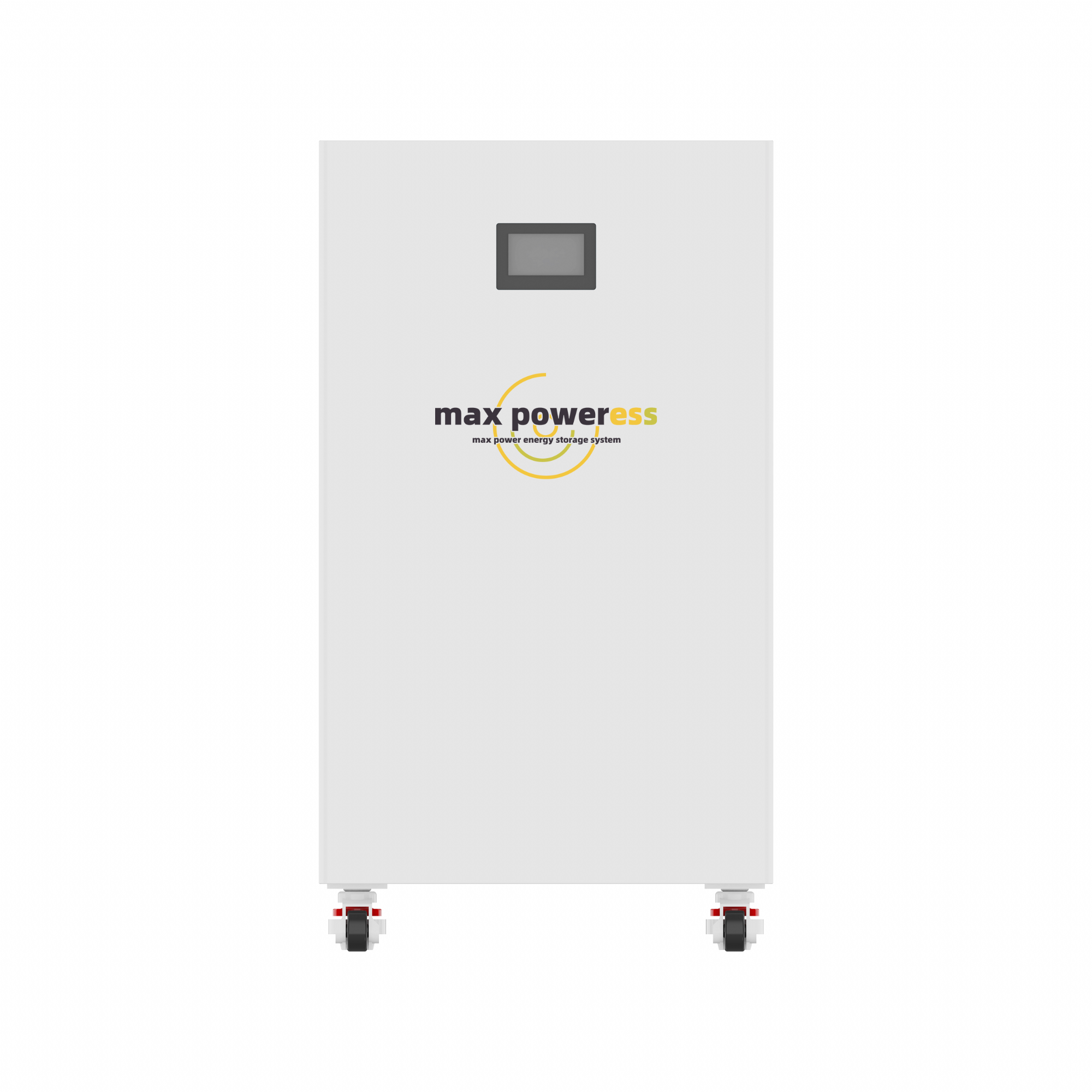

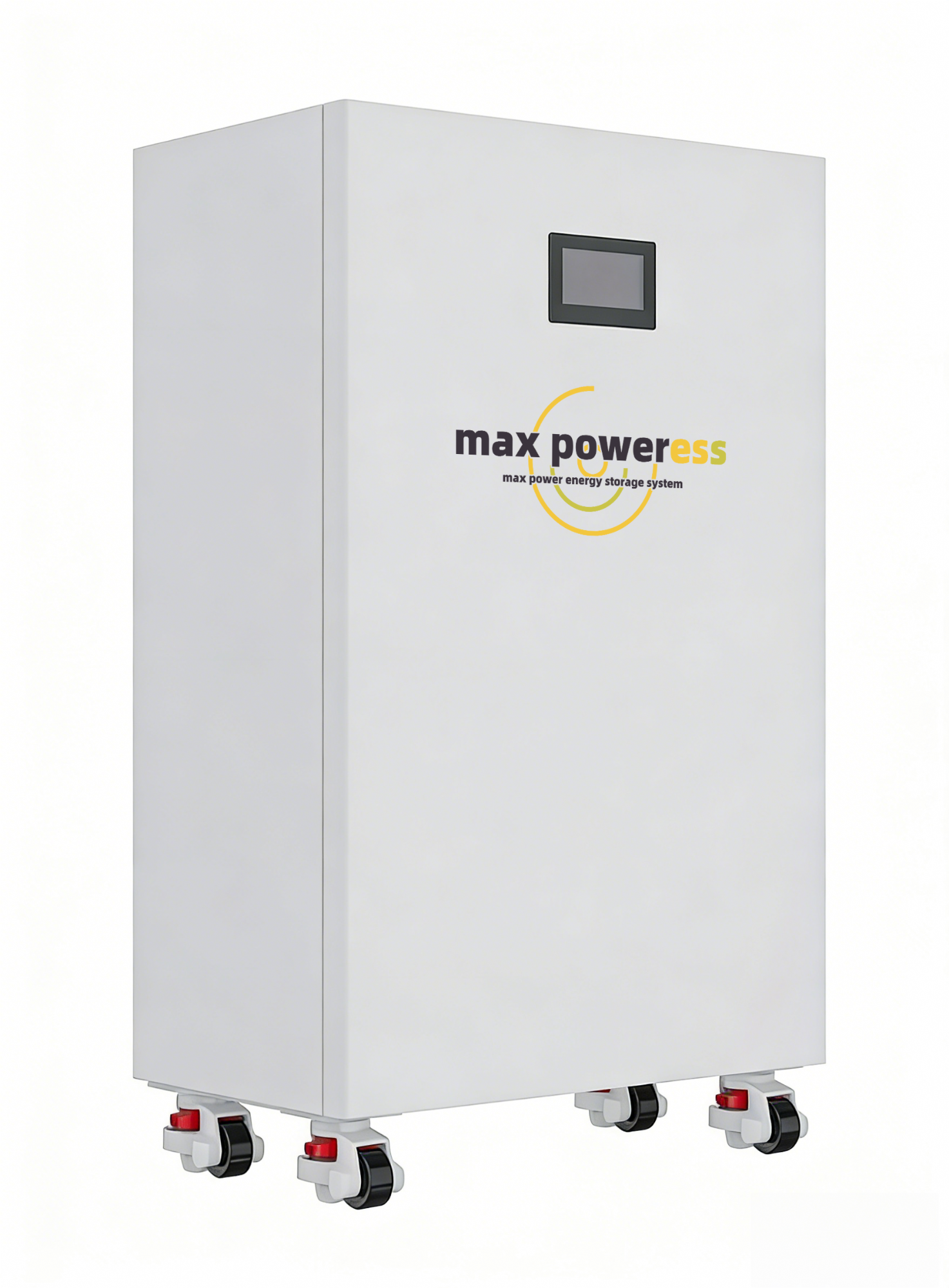

51.2V 314Ah LiFePO4 Battery

·Long life and safety

Vertical industry integration ensures more than 6500 cycles with 80% DoD. Safe Lithium iron phosphate battery cell.

·Intelligent

Each battery with independent BMS system manages power output smartly and effectively.

·Modularization

Modular design gives the end customers the power of choice of capacity Deliver up to 257.28KWh with single max module (16.08KWh) at 16pcs parallel connection.

·Easy to install and use

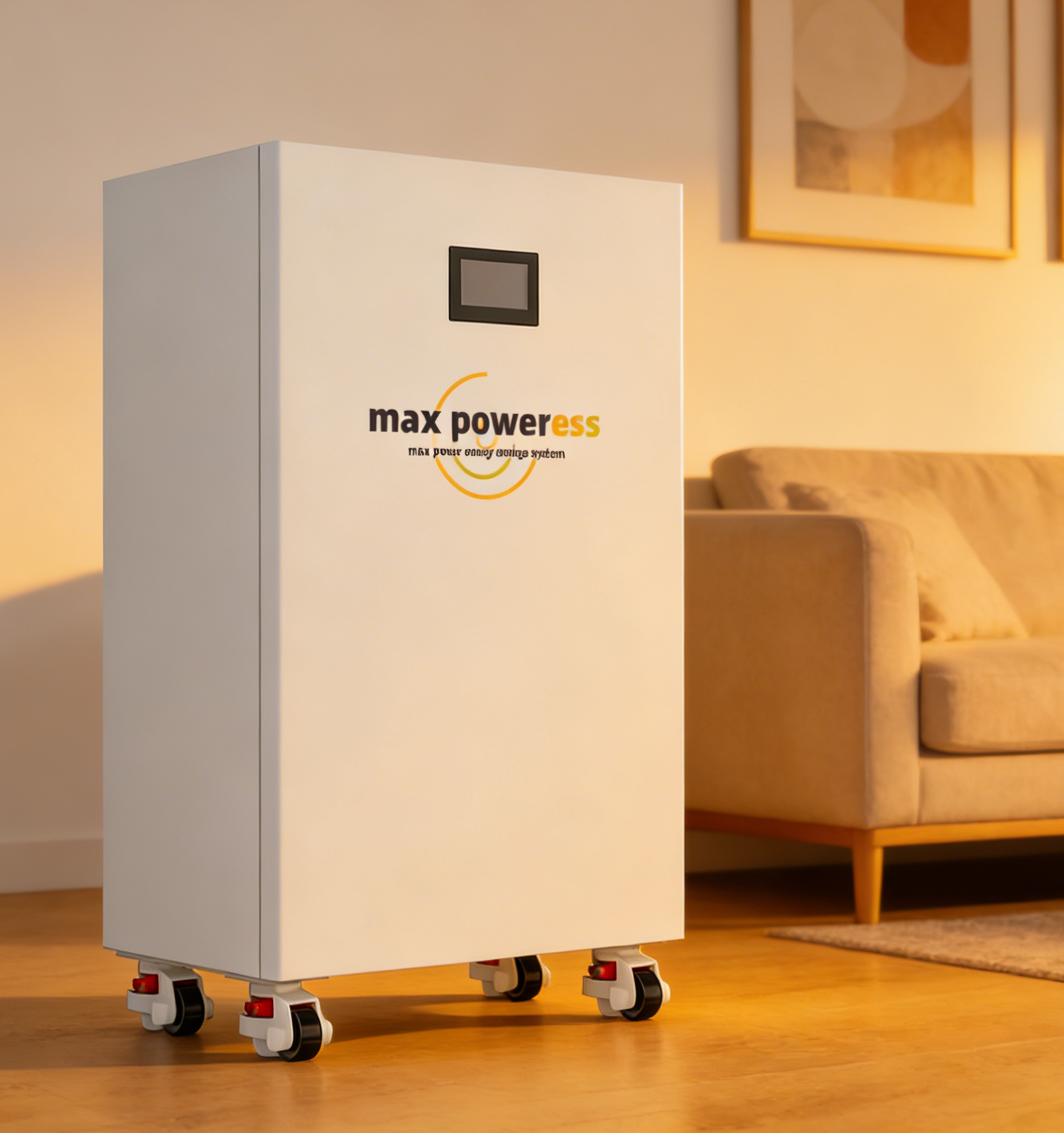

Just plug and play to minimize the installation time and cost. Compact and fashionable design fits in your sweet home environment.

·Compatibility

Compatible with most of the available Hybrid inverters.

·Safety Cert

CE, UN38.3, MSDS

Nominal Parameters

• Battery Chemistry: LiFePO4

• Voltage: 51.2V

• Capacity: 314Ah

• Energy: 16.08kWh

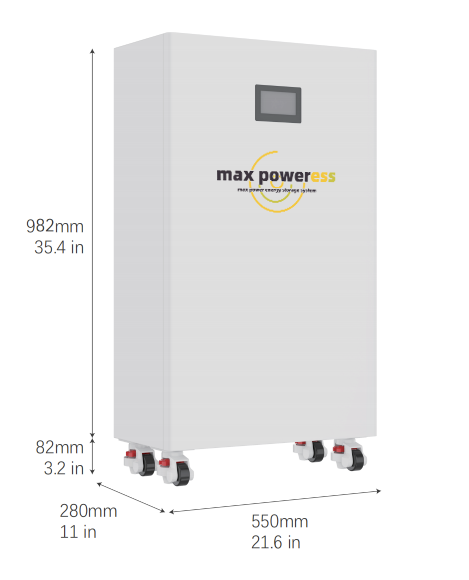

• Dimension (W/H/D): 550*982*280mm / 21.6*38.6*11.0 in

• Weight Approximate: 135kgs / 298 lbs

Basic Parameters

• Warranty Period [3]: 5 years

• Cycle Life (25±2°C, 0.5C/0.5C, 80%EOL): ≥ 6500

• Storage Time / Temperature: 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C

• Operation Temperature: -20°C to 60°C @ 60+/-25% Relative Humidity

• Storage Temperature: 0°C to 45°C @ 60+/-25% Relative Humidity

• Certification: CE, UN38.3, MSDS

• IP Rating of Enclosure: IP20

Electrical Parameters

• Operation Voltage: 46-56Vdc

• Max. Charging Voltage: 56Vdc

• Max. Charging Current: 150A

• Max. DisCharging Current: 150A

Application

• Residential Solar Energy Storage (ESS): Storing excess solar power for nighttime use to achieve energy independence.

• Home Backup Power (UPS): Providing seamless emergency electricity during grid outages or unstable power supply.

• Off-Grid Power Systems: Powering remote cabins, mountain villas, or areas without access to the public utility grid.

• Hybrid Solar Solutions: Integrating with on-grid and off-grid inverters for flexible energy management and peak shaving.

• Small Commercial Energy Storage: Reducing electricity costs for small offices, retail stores, and warehouses.

• Critical Infrastructure Support: Reliable power backup for telecommunication base stations and security monitoring systems.

• Self-Consumption Optimization: Maximizing the use of self-generated renewable energy to reduce monthly utility bills.

• Microgrid Applications: Serving as a core energy storage module for localized, independent power networks.
