Early morning sunlight hits the fairway. Players are ready. The day feels perfect—until a golf cart stops halfway through the course with a drained battery.
No matter how beautiful the swing, the experience collapses when the cart can’t keep up.
A golf cart battery is more than a power source—it’s the heart of your fleet’s performance and your customer experience.
Whether you’re a golf course operator or a dealer serving premium users, the right battery determines uptime, operating costs, and brand reputation.
Real scenario:
Mr. Zhang, owner of a 36-cart golf club fleet, faced repeated complaints as multiple carts died mid-route. Tee times delayed, negative reviews increased, and maintenance costs spiked.
The problem wasn’t the carts—it was outdated battery systems.
Common pain points in the industry:
For course operators and dealers, these challenges affect fleet efficiency, customer satisfaction, and profit margins.
| Selection Criteria | Lead-Acid Battery (Traditional) | Lithium Iron Phosphate – LiFePO₄ (Modern & Smart) |
| Lifespan | 1–2 years | 5–8 years |
| Maintenance | Monthly, high effortMonthly, high effort | Zero-maintenance |
| Weight | Heavy, reduces range | Lightweight, increases range |
| Safety | Risk of leakage | IP67 waterproof & safer |
| Long-term cost | Appears cheap, but costs more | Lower total investment |
settings]
|
Usage Scenario |
Recommended Capacity |
Expected Range |
Typical Cart Type |
|
Personal / Home Use |
100Ah |
18–25 km |
2–4 seat cart |
|
Golf Course Daily Fleet |
150Ah |
25–35 km |
4–6 seat cart |
|
Resorts / Hotels / Large Estates |
200Ah |
40–60 km |
6–8 seat cart |
|
Battery Voltage |
Motor Compatibility |
Recommended Model |
|
36.8V |
2000W–3000W |
Max Power 36.8V 105Ah |
|
51.2V |
5000W |
Max Power 51.2V 160Ah |
|
76.8V |
7000W–9000W |
Max Power 76.8V 105Ah |
Tip for Dealers: Offering 2–3 preset “application bundles” boosts conversion and simplifies customer decision-making.
.png)
|
Step |
What to Do |
Pro Tip |
|
1 |
Gather tools |
Insulated gloves, wrench, multimeter |
|
2 |
Safety check |
Dry area, fire extinguisher nearby |
|
3 |
Cart setup |
Park on flat, ventilated surface |
|
Step |
Action |
Key Reminder |
|
1 |
Turn off power |
Confirm master switch is OFF |
|
2 |
Disconnect cables |
Always: negative first, positive second |
|
3 |
Remove fasteners |
Take photo to record original wiring |
|
4 |
Lift battery out |
Two-person task for safety |
|
Step |
Action |
Expert Suggestion |
|
1 |
Clean battery tray |
Remove corrosion; keep dry |
|
2 |
Place new battery |
Ensure space for heat dissipation |
|
3 |
Secure mounting |
Use original brackets for stability |
|
4 |
Reconnect cables |
Positive first, negative last |
|
5 |
Protect terminals |
Apply anti-oxidation agent |

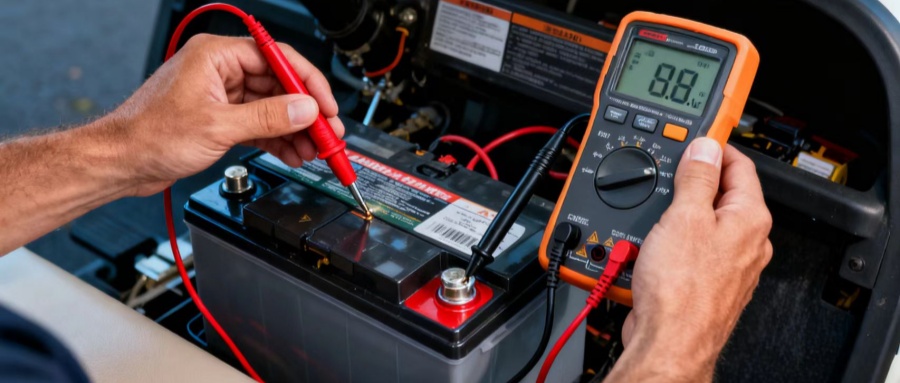

After installation, run these quick checks to ensure everything is functioning correctly:
|
Test Item |
Standard Result |
How to Check |
|
Voltage Output |
Matches rated voltage |
Use multimeter |
|
Cable Tightness |
No loose wiring |
Manual shake test |
|
Display Accuracy |
Data shows normally |
Turn on and observe |
|
Charge/Discharge |
Running smoothly |
Short test drive |
|
Feature |
Specification |
Benefit for Operators & Dealers |
|

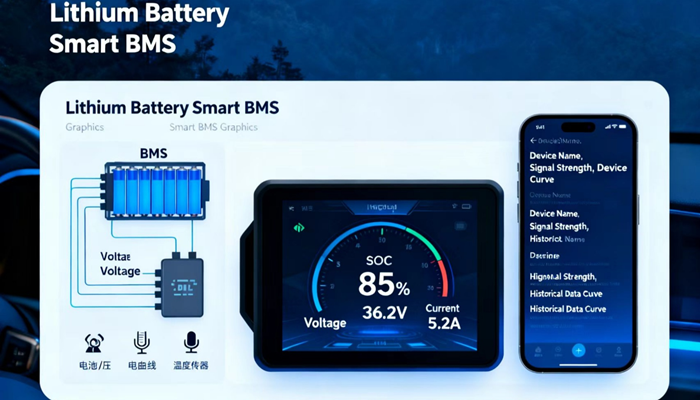

Smart Display |
Standard 3m cable (extendable) |
Real-time visibility of battery status |
|
Communication Protocol |
CAN / RS485 |
Compatible with cart systems & fleet telematics |
|
Protection Level |
IP67 |
Worry-free use in rain, humidity & washing |
|
Overcurrent Protection |
400A peak for 1 min |
Stronger performance on slopes & acceleration |
A well-maintained lithium system can last 5–8 years—sometimes up to 10.
Here’s how to safeguard your performance and ROI:
Routine Care Plan
|
Task |
Best Practice |
Frequency |
|
Charge Management |
Maintain 20–90% |
After each use |
|
Terminal Check |
Clean & tighten |
Monthly |
|
Exterior Cleaning |
Wipe with dry cloth |
Weekly |
Seasonal Maintenance
|
Season |
Priority Care |
Expert Tip |
|
Summer |
Heat dissipation |
Avoid charging immediately after sun exposure |
|
Winter |
Warm charging environment |
Charge indoors for best efficiency |
Switching to lithium is not an expense—it’s a business decision that improves profit and efficiency.
|
Cost Item |
Lead-Acid |
Lithium (LiFePO₄) |
|
Initial Purchase |
1× |
1.8× |
|
Maintenance |
0.5× |
0.1× |
|
Replacement Frequency |
2–3 times |
0–1 time |
|
5-Year Total Cost |
2.5–3.5× |
1.8–2.0× |
For a typical 36-cart golf course fleet:
Max Power provides more than batteries — we deliver reliability, technical expertise, and business support for fleets and dealers.
|
Service |
What You Get |
|
Technical Consultation |
Expert product & installation guidance |
|
After-Sales Support |
Troubleshooting & technician assistance |
|
Emergency Support |
Fast-response technical team available 24/7 |
Choosing Max Power means gaining:
Let us power your course or dealership with long-lasting performance.
Speak with a Golf Cart Power Specialist Today
Technical Hotline: +86-158-1441-7194
Official Website: www.szmaxpower.com
