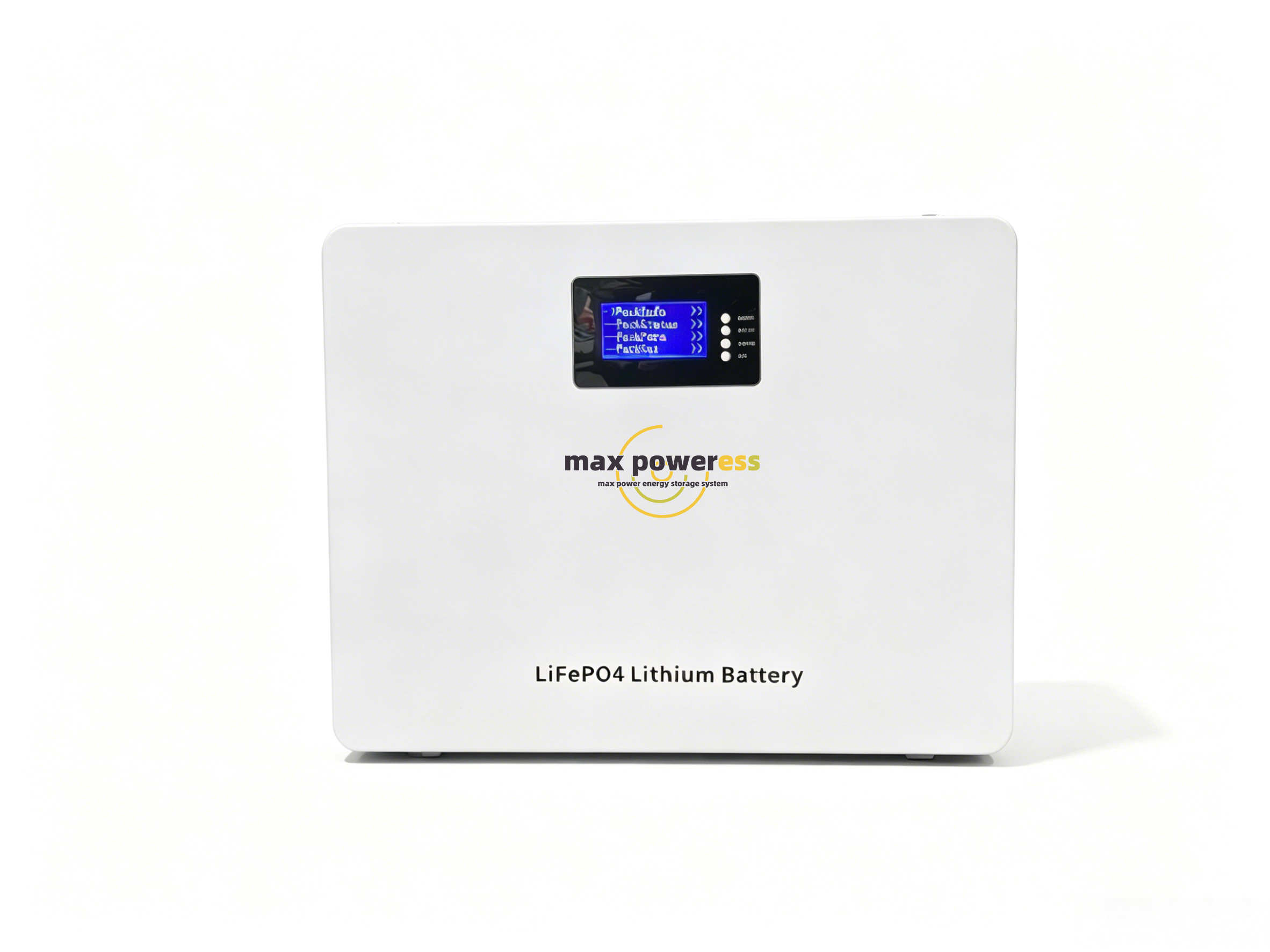

25.6V 100Ah 2560Wh LFP Battery

25.6V 100Ah 2560Wh Wall-Mounted LiFePO4 Lithium Battery Pack with Comprehensive BMS Protection LCD Display

Key Feature

MODEL：25.6V100Ah

Case design：Wall mounted

Battery Type: LiFePO4

Nominal Battery Voltage(Vdc)：25.6V

Normal Capacity (25℃, 0.2C) (Ah)：100Ah

Normal Capacity (25℃, 0.2C) (Wh)：2560WH

Float Charge Voltage(Vdc)：28.0V

Operation Voltage range (Vdc)：20.0~29.2V

Max.Continuous Charge Current(A)：50A

Max.Continuous Discharge Current(A)：100A

Max.Pulse Discharge Current(A)：150A 1Sec

Terminal：M6

Storage temperature：0℃ ~ 30℃

IP degree：IP 20

Storage duration：6 months at 25℃

Safety standard：UN38.3, MSDS

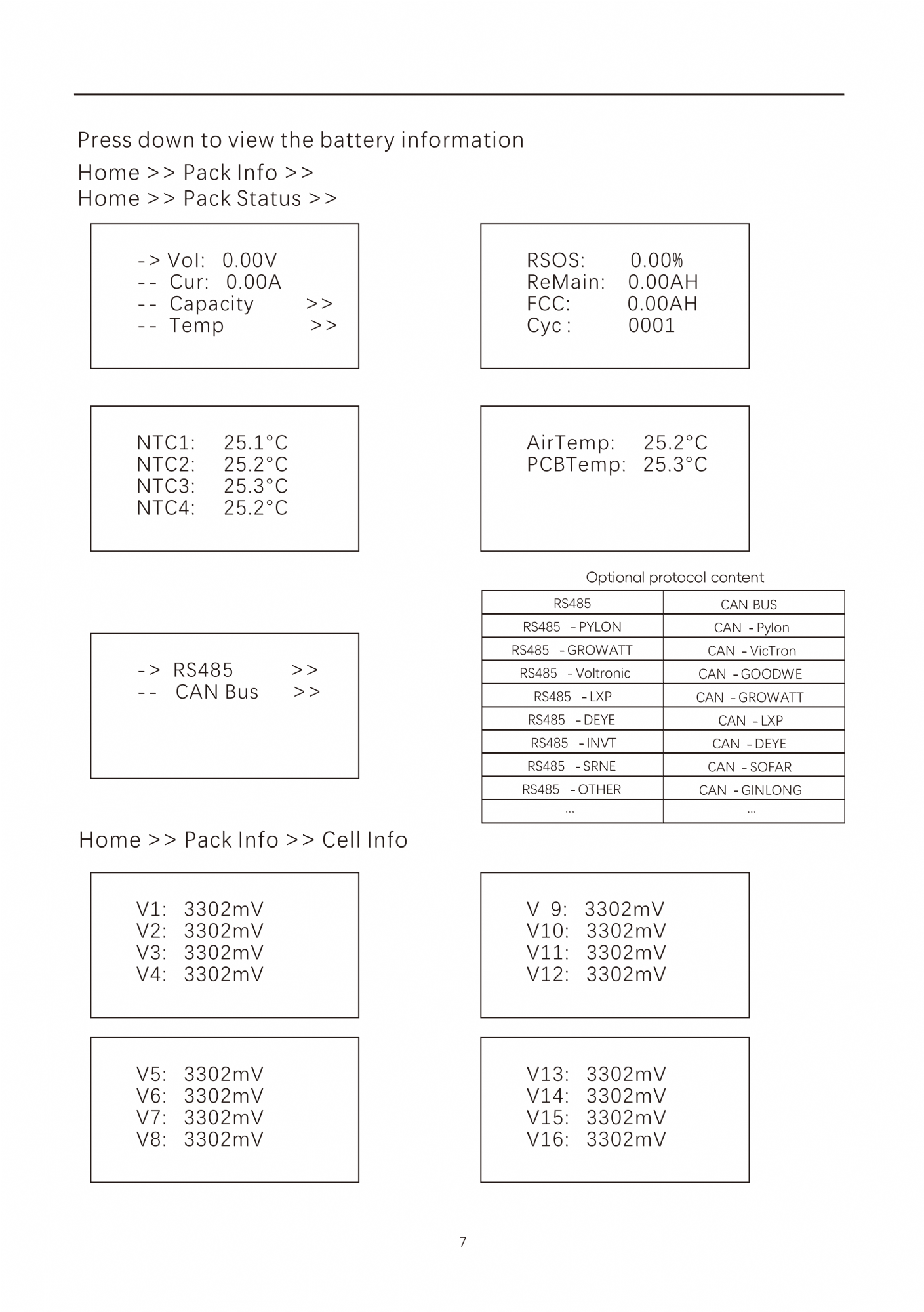

Display (Optional)：LCD

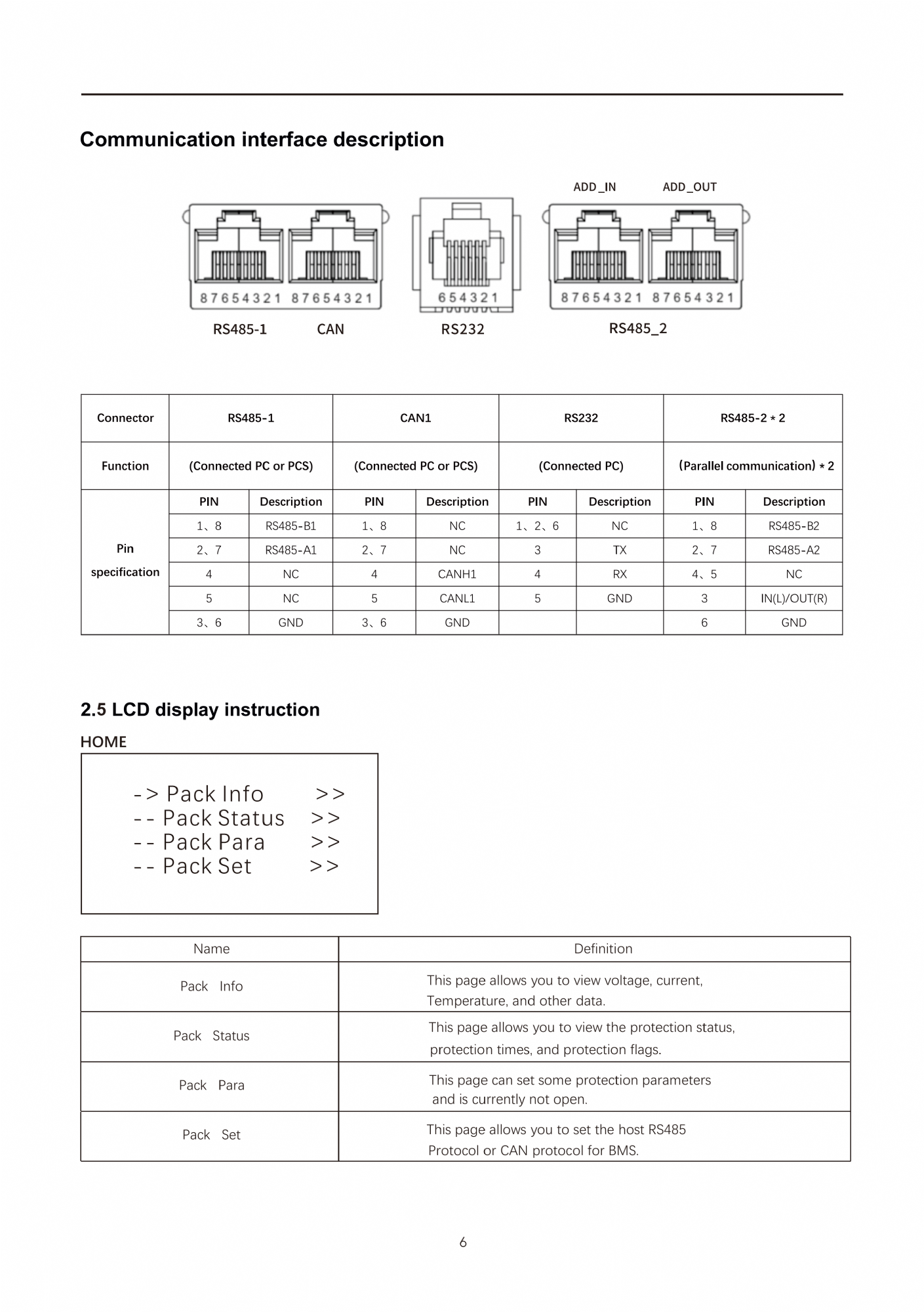

Communication Port (Optional)：CAN, RS485

Advantage

Convenient：
Quick installation, is comfortable for installation and maintenance.
Available Flexible expansion ：

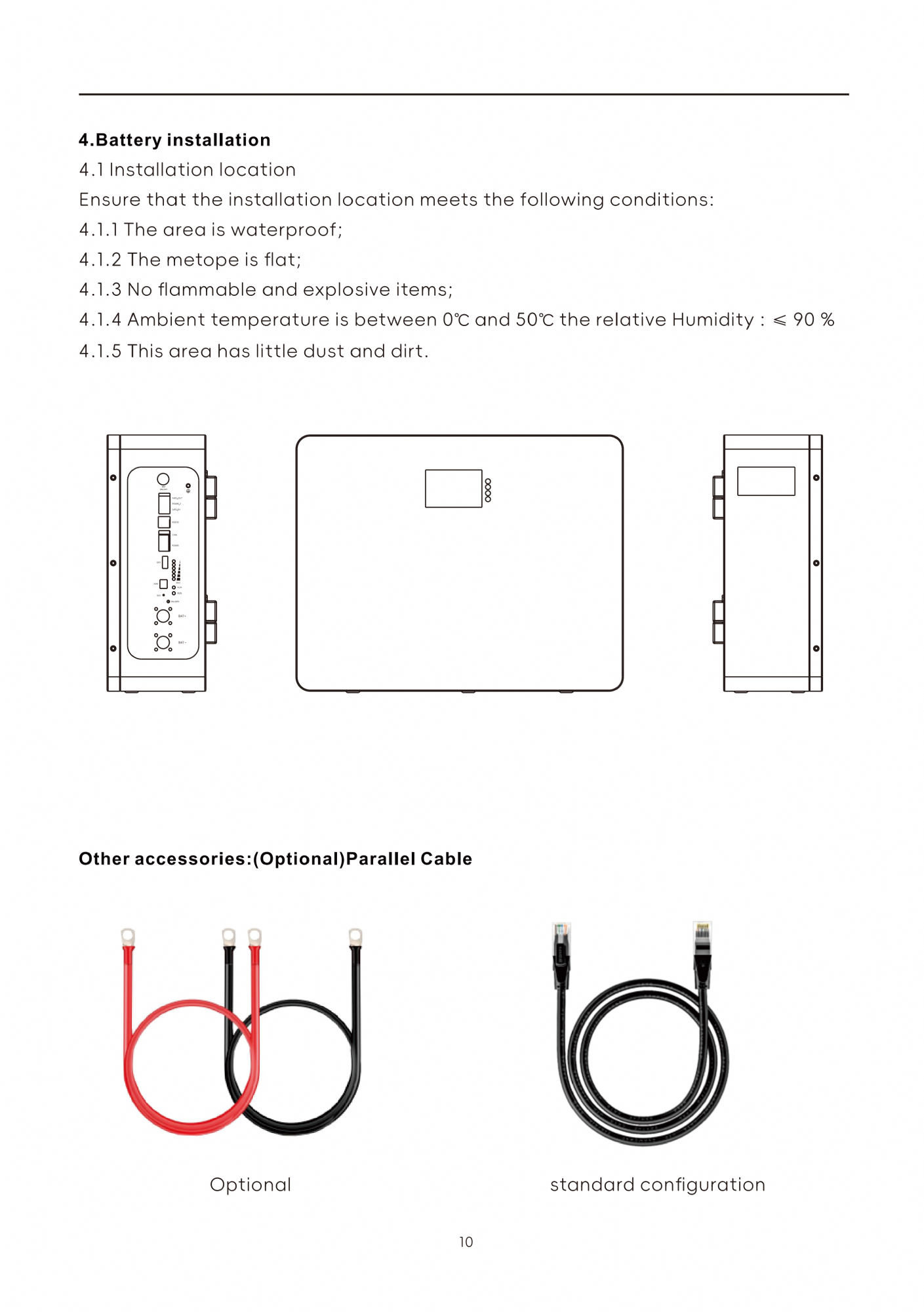

Support Wallmounted and Stackable installation.
Safe and reliable ：
Cathode material is made from LiFePO4 with safety performance and long cycle life, The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.
Flexible configuration ：

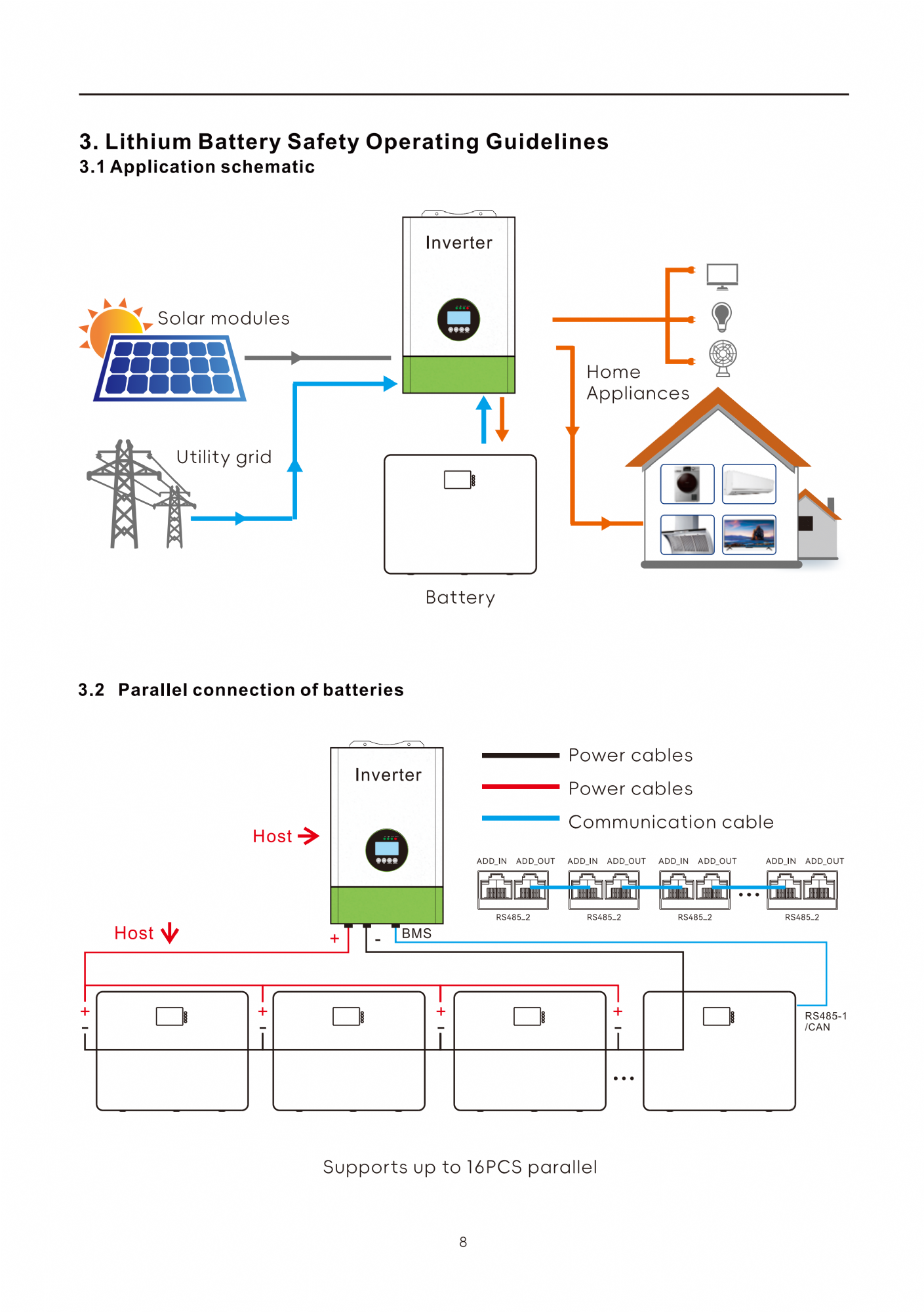

Multiple battery modules can be in parallel for expanding capacity and power. Support USB upgrade, WIFI upgrade (optional), remote upgrade (Compatible with all inverter).
Intelligent BMS：
It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell.
Wide temperature ：
Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life.

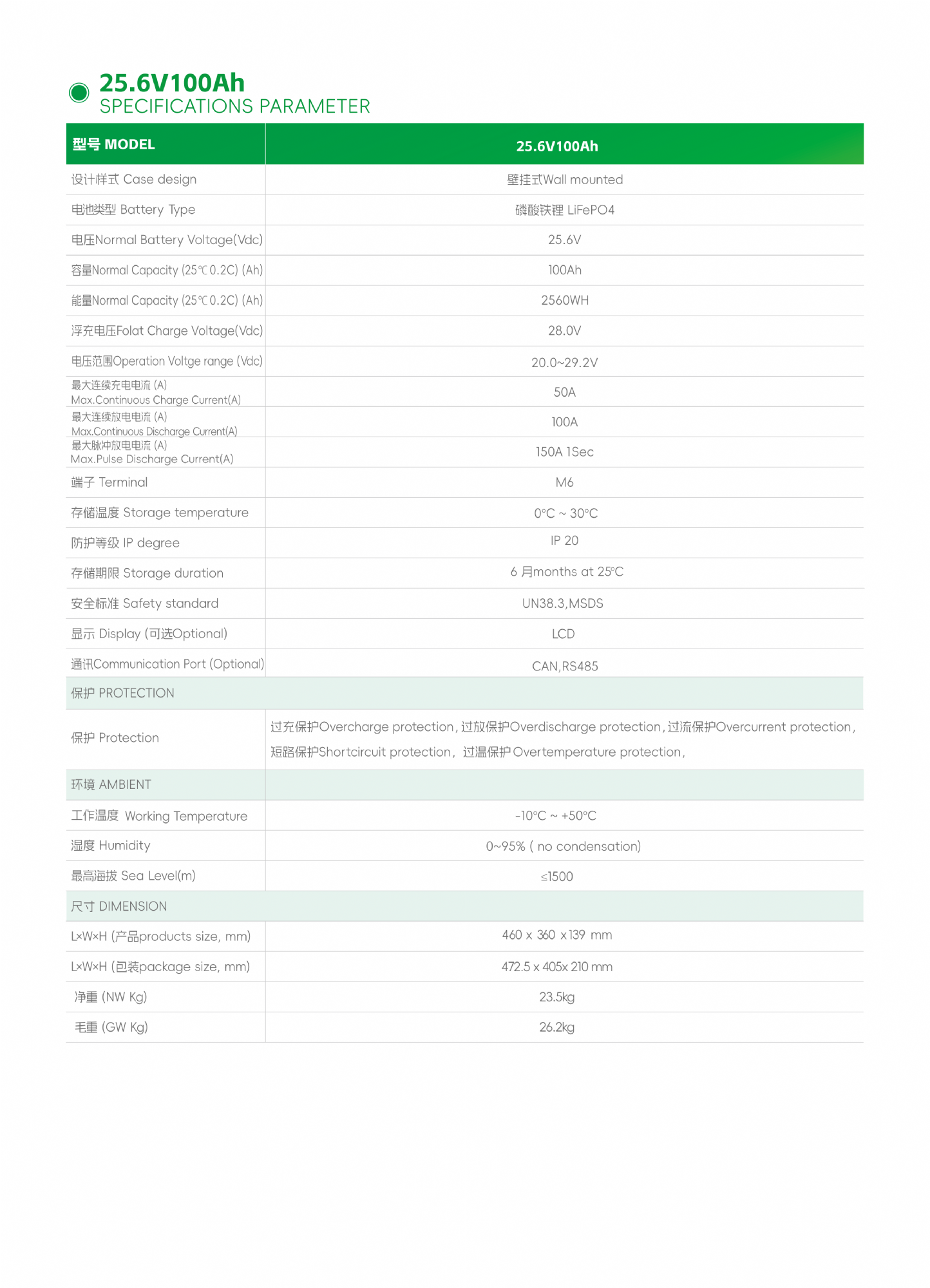

Specification

Application

Residential Solar Energy Storage (ESS): Storing excess solar power for nighttime use to achieve energy independence.
Home Backup Power (UPS): Providing seamless emergency electricity during grid outages or unstable power supply.
Off-Grid Power Systems: Powering remote cabins, mountain villas, or areas without access to the public utility grid.
Hybrid Solar Solutions: Integrating with on-grid and off-grid inverters for flexible energy management and peak shaving.
Small Commercial Energy Storage: Reducing electricity costs for small offices, retail stores, and warehouses.
Critical Infrastructure Support: Reliable power backup for telecommunication base stations and security monitoring systems.
Self-Consumption Optimization: Maximizing the use of self-generated renewable energy to reduce monthly utility bills.
Microgrid Applications: Serving as a core energy storage module for localized, independent power networks.
