OPZV2-250

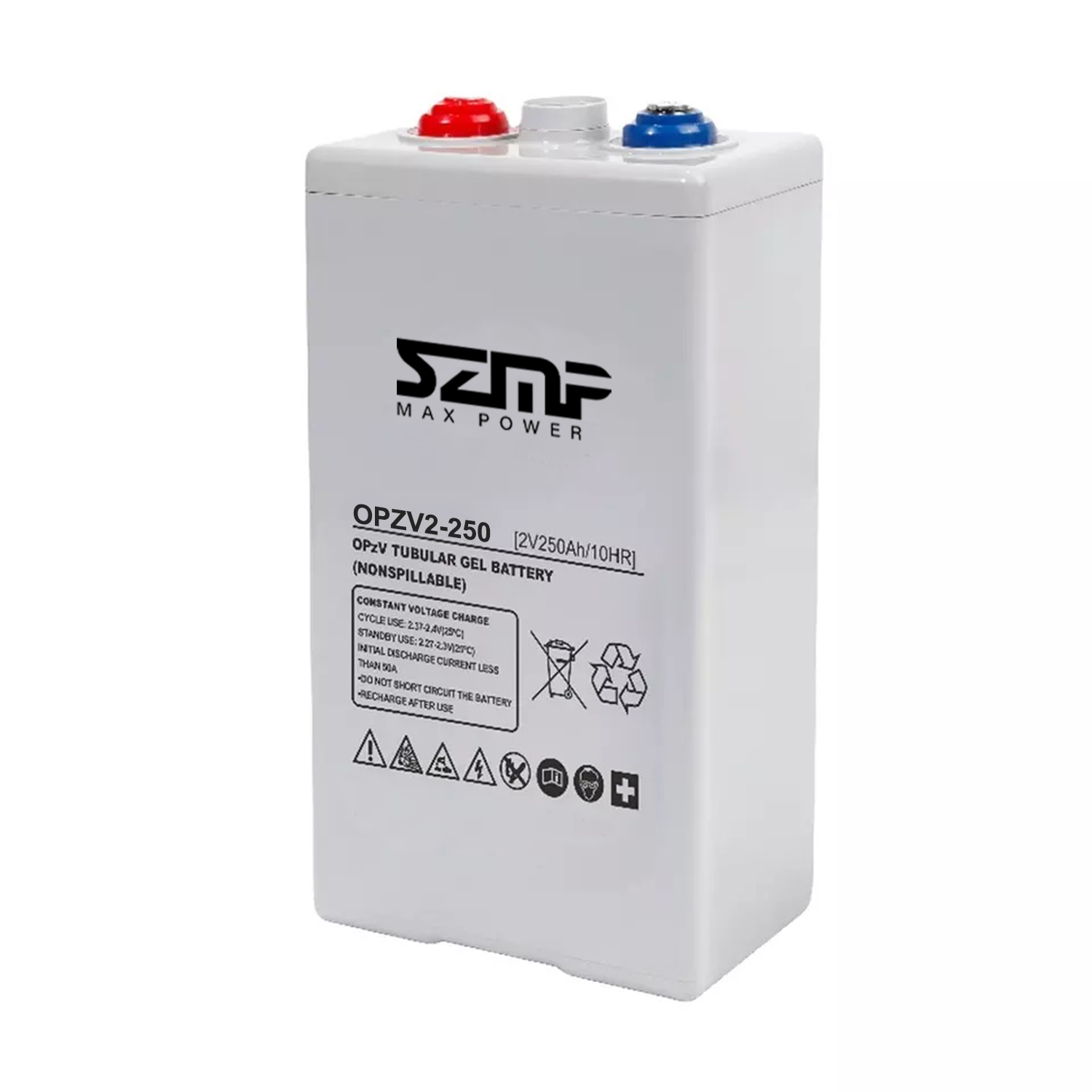

Tubular Battery OPZV 2V250AH Longest Cycle Times GEL Battery for Solar Power Systems
Key Feature
Voltage ： 2v
Capacity ：200ah
Battery type : OPZV Lead acid battery
Cycle life： 2000 cycles
Warranty ：1 Year
OEM ：Available
Application ：Electricity 、communication system、Solar system、Railway, aerospace and military area.
Cell Brand ：Max Power
Certification：ISO9001，CE， ROSH，UN38.3，CNAS，MSDS,KC

Features
 1. Safety: Lead Acid battery, no fire, none explosive
2. Clean and green energy, does not contain toxic material
3.Powerfull
4.Prolonged life cycle, after 800-1000 cycles, the residual capacity exceeds 80% of its original capacity.
5.No memory effect, highly efficient charging at any time
6. Wide operating temperature:-10~55°C
7. Low self-discharge rate:<3% monthly
8.With individual package, clear warning mark, logo. Instruction manual printed in colors
Specification

Battery Model NP250 -2    2V250AH
Designer Floating Life Up to 15 Years
Capacity    (25℃) 10HR(20.0A,1.8V) 3HR(50.0A,1.7V) 1HR(110.0A,1.6V) 0.25HR(340.0A,1.6V)
250.0AH 200.0AH 160.0AH 105.0AH
Dimensions Length Width Height Total Height
124mm (6.69inch) 206mm (4.33inch) 355mm (13.15inch) 390mm (14.37inch)
Approx. Weight 21.0Kg
Internal Resistance Full charged at 25℃:≤0.75mΩ
Self Discharge 2% of capacity declined per month at (25℃)
Capacity Affected
by Temp.(10HR)		 40℃ 25℃ 0℃ -15℃
102% 100% 85% 65%
Charge Voltage(25℃) Cycle use Float use
2.40-2.50V (-3mV/℃), max. Current:50.0A 2.25-2.30V (-3.0mV/℃)
